Classical V-belt
Classical V-belt section is trapezoid, the whole circle without joint, triangle belt specifications are divided by the size of the back width (top width) and height (thickness), according to the size of different top width and height, divided into seven types, respectively, O type, A type, B type, C type, D type, E type, F type, each type of section width, top width, height are not the same.

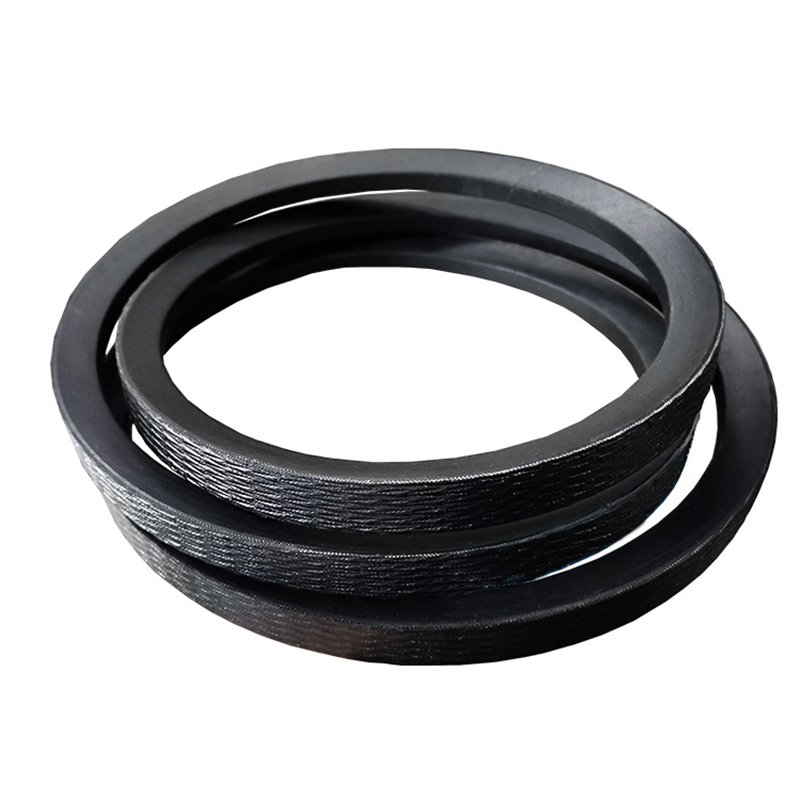

Wrapped Classical V-belt Details
| Type | Top Width | Pitch Width | Height | Wedge Angel | Conversion Table | Length Standard | Minimum Diameter of pulley (mm) | Weight/m |
|---|---|---|---|---|---|---|---|---|
| MM | MM | MM | KGS | |||||
| Z/M | 10 | 8.5 | 6 | 40 | Li=Lw-22 La=Li+38 | La/Lw/Li | 50 | 0.065 |

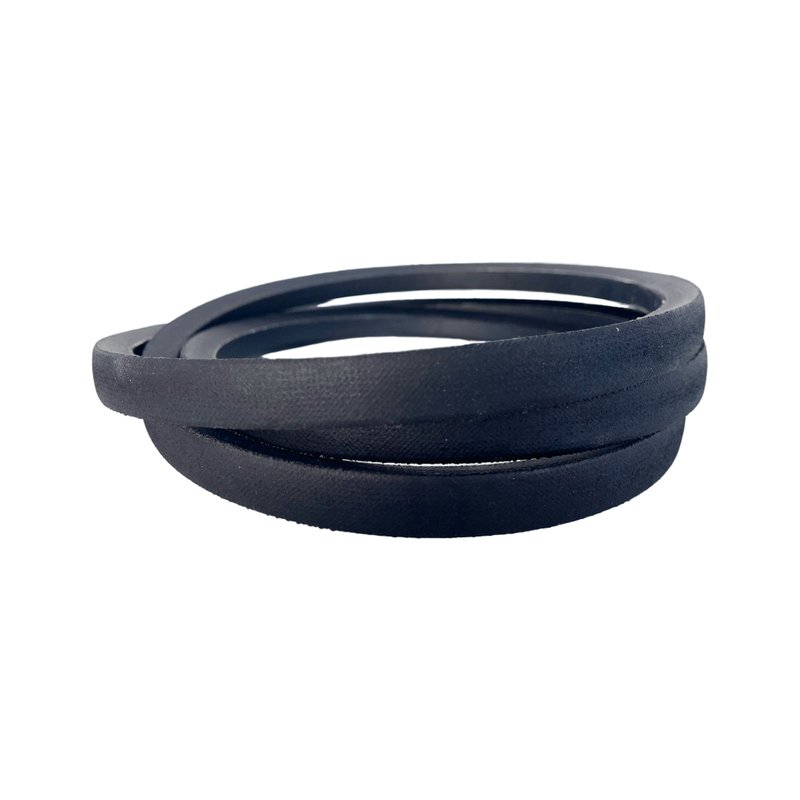

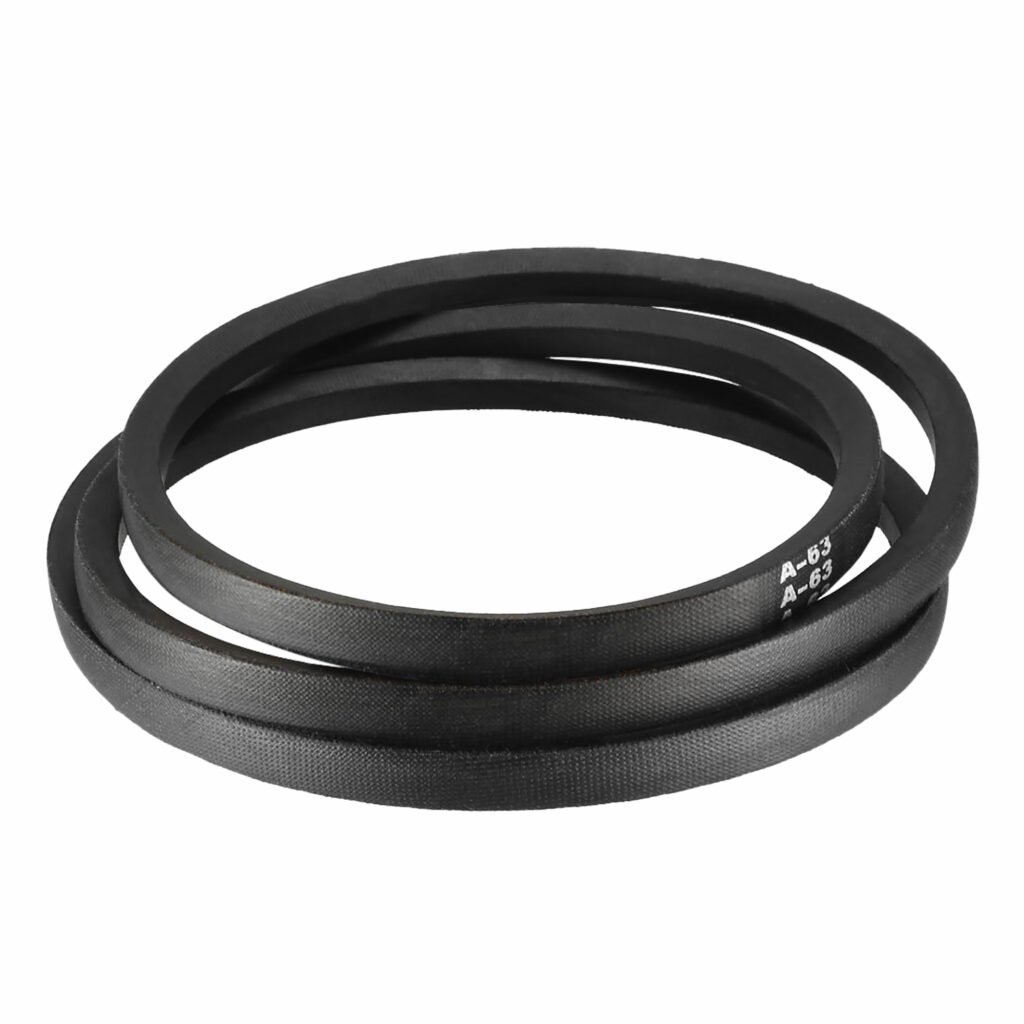

| A | 13 | 11 | 8 | 40 | Li=Lw-30 La=Li+50 | La/Lw/Li | 75 | 0.112 |
| B | 17 | 14 | 11 | 40 | Li=Lw-40 La=Li+69 | La/Lw/Li | 125 | 0.192 |

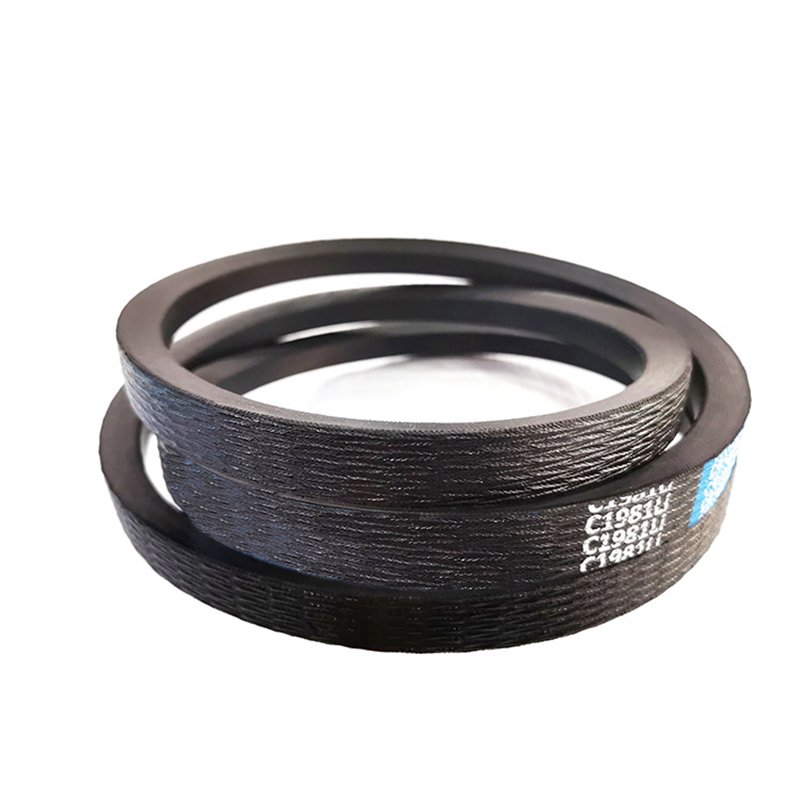

| C | 22 | 19 | 14 | 40 | Li=Lw-58 La=Li+88 | La/Lw/Li | 200 | 0.31 |
| D | 32 | 27 | 19 | 40 | Li=Lw-75 La=Li+119 | La/Lw/Li | 355 | 0.61 |
| E | 38 | 32 | 25 | 40 | Li=Lw-80 La=Li+151 | La/Lw/Li | 500 | 0.94 |
| F | 50 | 42.5 | 30 | 40 | Li=Lw-120 La=Li+188 | La/Lw/Li | 650 | 1.58 |
| 20 | 20 | 17 | 12.5 | 40 | Li=Lw-50 La=Li+79 | La/Lw/Li | 150 | 0.24 |
| 25 | 25 | 21 | 16 | 40 | Li=Lw-62 La=Li+101 | La/Lw/Li | 250 | 0.43 |
| Structure | Functions | Materials |
|---|---|---|
| 1.Cover fabric | Protects the inner parts of the belt and strong abrasion on the pulley groove | Cotton fabric, Polyester, Cotton synthetic fabric |
| 2. Tension member | Primary material for transferring power | Polyester with specially treated |
| 3. Top compression rubber | Maintains belt shape (upper) | NR, CR, SBR |
| 4. Adhesive rubber | Supports and protects tension member adhesion | NR, CR, SBR |
| 5. Bottom compression rubber | Maintains belt shape (lower) | NR, CR, SBR |
Narrow V-Belts Applications
Narrow V-belts are widely used in industrial machinery and equipment that require compact, efficient, and reliable drives:
Why Choose Our Belts for Your Manufacturing Needs?
Discover how our innovative conveyor belt solutions enhance efficiency, reduce downtime, and provide reliable performance for all your industrial needs.
- Manufactured with high-quality rubber compounds for maximum wear resistance
- Reinforced with strong polyester or aramid cords for minimal elongation
- Compatible with global standards (ISO/DIN) for easy replacement
- OEM/ODM customization available (Materials, length, branding, packaging)
- Competitive factory-direct pricing with fast delivery
